Thermovent

KV EC

KV EC

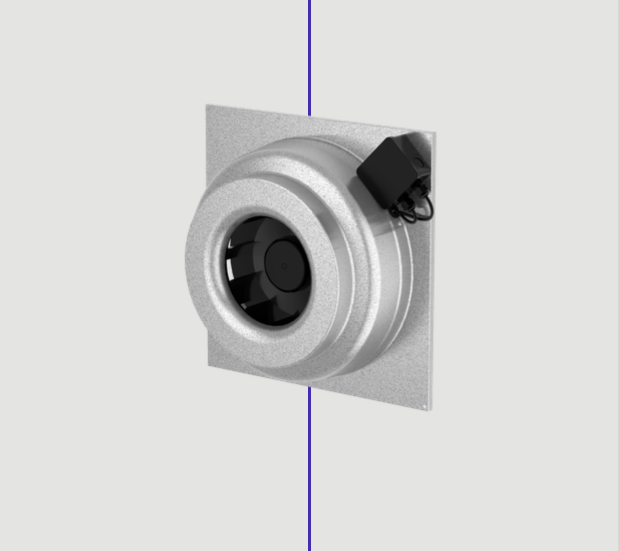

• Wall fan with circular inlet connection, designed for installation on walls with duct systems.
• KV has a square mounting plate, providing stability and ease of installation. • Proven performance and reliability, offering consistent operation across a variety of applications.

• Compact with high capacity and efficiency, making it suitable for space- limited environments while delivering robust ventilation.
• Operational in both 50 and 60 Hz, allowing versatility across different electrical standards.

• Impeller with backward-curved blades, optimising airflow for maximum efficiency.
• The external rotor motor has maintenance-free sealed ball-bearings, reducing maintenance needs and increasing longevity.

• Integrated motor protection, enhancing safety and extending the motor’s lifespan.
• The junction box has an enclosure class of IP 54, offering dust and water resistance, suitable for installation in damp environments.

• For speed control, a transformer or electronic speed controller can be connected, allowing flexible control of airflow.
• The fan housing is manufactured from galvanised sheet steel, providing durability and resistance to corrosion.

• The fan is intended to be installed in a duct system, mounted on the inside wall, offering versatility in installation.
• Easy installation in any position, providing flexibility during setup and
allowing various mounting orientations.

• Can be used in damp environments, thanks to its robust construction and IP54-rated junction box.
• To comply with the ErP 2018 regulation, a local demand controller must be
used, ensuring energy efficiency and regulatory compliance.

KVFU 100 C1 EC-y1

KVFU 125 C1 EC-y1

KVFU 160 B1 EC-y1

KVFU 160 C1 EC-y1

KVFU 200 A1 EC-y1

KVFU 200 B1 EC-y1

KVFU 250 A1 EC-y1

KVFU 250 B1 EC-y1

KVFU 315 C1 EC-y1

KVFU 315 D1 EC-y1
